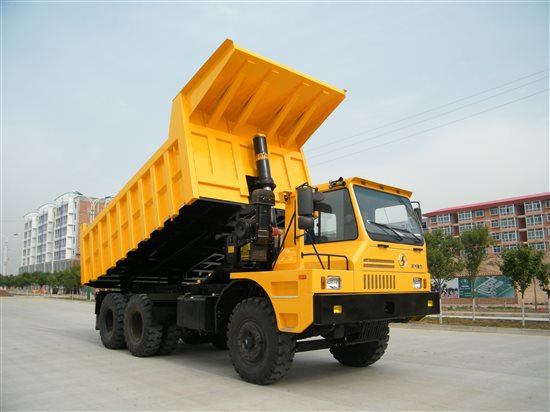

礦威90系列非公路礦用自卸車配置表
康明斯QSM11
車輛型號model | STL380 |
驅動形式drive model | 6×4 |
整備質量preparation mass | 28000 |
額定載質量rated loading mass | 52000 |
額定總質量rated total mass | 80000 |
整車設計外形尺寸body design Size parameters | 8970×3504×4250 |
最高時速（㎞/h）max speed | 40 |
最小離地間隙（㎜）min ground clearance | 330 |
最小轉彎半徑min turning radius | ≤13 |
最大爬坡能力（%）max climb degree | ≥40 |
軸距wheel base | 3850+1560 |
駕駛室cab | 偏置單邊礦用駕駛室side mining cab |
發動機型號engine model | 康明斯 cummins QSM11 420 30 |
發動機排量（L）displacement | 10.8 |
額定功率（KW）rated power | 306 |
最大扭矩/轉速（N.m /rpm）max torque | 2010/1200 |
變速箱gearbox | 法士特fast 10JSD220 |
前軸軸荷front axle | 19T |
后橋軸荷rear axle | 35T×2 |
排放標準 emission standard | 國ⅢeuroⅢ |
車架frame | 三層（10+8+6）three layer |
制動系統brake system | 雙回路制動，JACOB制動，駐車制動double circulate brake，JACOB brake，parking brake。 |
電器系統electric system | 單線制24V，負極搭鐵JACOB |
空濾器air filter | 油浴式空氣濾清器oil air filter |
油箱容積（L）fuel tank | 450L鋁合金制450Laluminum |
輪胎tire | 14.00-25 |
貨箱內部尺寸box inter parameter | 5800×3200×1800 |
貨箱板材厚度box material thickness | 礦用斗不帶門，多節前舉，底16邊12，前板固定厚度10，貨箱材料Q355B）Mining bucket without door, multi-section front lift, bottom 16 edge 12, front plate fixed thickness 10, container material Q355B) |
舉升形式lift model | 德普卡勒196前舉depkale front lift 196 |
其他other | 手動翻轉、普通暖風、手動空調、轎車式膠粘密封玻璃、Ф430拉式離合器、雙推力桿懸掛、ADI高強耐磨材料懸掛鑄件、二層結構600L材料車架、180Ah免維護蓄電池、金屬保險杠、集中潤滑系統、燃油預熱裝置、冷卻液加熱裝置、縱梁底板加熱 Manual flip, Ordinary warm wind, manual air conditioning, car type adhesive sealing glass, Ф430 pull clutch, double thrust rod suspension, ADI high strength wear-resistant material suspension castings, two-layer structure 600L material frame, 180Ah maintenance-free battery, metal bumper, centralized lubrication system, fuel preheating device, coolant heating device, Longitudinal beam bottom Plate heating |
礦威90系列非公路礦用自卸車配置表
玉柴YC6K480
車輛型號model | STL390 |
驅動形式drive model | 6×4 |
整備質量preparation mass | 28000 |
額定載質量rated loading mass | 62000 |
額定總質量rated total mass | 90000 |
整車設計外形尺寸body design Size parameters | 8970×3504×4250 |
最高時速（㎞/h）max speed | 40 |
最小離地間隙（㎜）min ground clearance | 330 |
最小轉彎半徑min turning radius | ≤13 |
最大爬坡能力（%）max climb degree | ≥40 |
軸距wheel base | 3850+1560 |
駕駛室cab | 偏置單邊礦用駕駛室side mining cab |
發動機型號engine model | 玉柴YC6K480 yuchaiYC6K480 |
發動機排量（L）displacement | 12 |
額定功率（KW）rated power | 353 |
最大扭矩/轉速（N.m /rpm）max torque | 2200/1900 |
變速箱gearbox | 法士特8DS240A |
前軸軸荷front axle | 25T |
后橋軸荷rear axle | 35T×2 |
排放標準 emission standard | 國ⅢeuroⅢ |
車架frame | 1120×380×120（10+10） |
制動系統brake system | 雙回路制動，駐車制動double circulate brake，parking brake。 |
電器系統electric system | 單線制24V，負極搭鐵 |
空濾器air filter | 油浴式空氣濾清器oil air filter |
油箱容積（L）fuel tank | 600L鋁合金制450Laluminum |
輪胎tire | 14.00-25 |
貨箱內部尺寸box inter parameter | 5800×3200×1800 |
貨箱板材厚度box material thickness | 礦用斗不帶門，多節前舉，底16邊12，前板固定厚度10，貨箱材料Q355B）Mining bucket without door, multi-section front lift, bottom 16 edge 12, front plate fixed thickness 10, container material Q355B) |
舉升形式lift model | 德普卡勒196前舉depkale front lift 196 |
其他other | 手動翻轉、普通暖風、手動空調、轎車式膠粘密封玻璃、Ф430拉式離合器、雙推力桿懸掛、ADI高強耐磨材料懸掛鑄件、二層結構600L材料車架、180Ah免維護蓄電池、金屬保險杠、集中潤滑系統、燃油預熱裝置、冷卻液加熱裝置、縱梁底板加熱 Manual flip, Ordinary warm wind, manual air conditioning, car type adhesive sealing glass, Ф430 pull clutch, double thrust rod suspension, ADI high strength wear-resistant material suspension castings, two-layer structure 600L material frame, 180Ah maintenance-free battery, metal bumper, centralized lubrication system, fuel preheating device, coolant heating device, Longitudinal beam bottom Plate heating |
